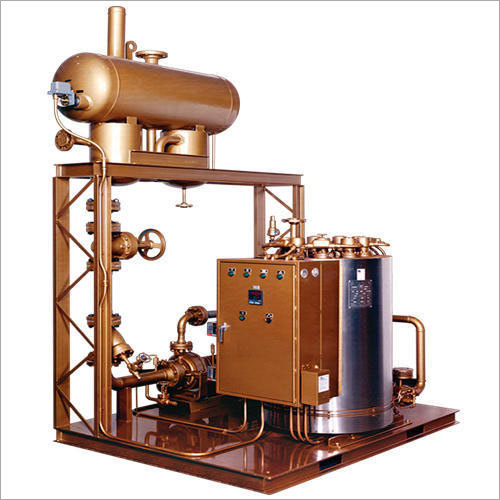

Vertical Three Pass Thermic Fluid Heater

Vertical Three Pass Thermic Fluid Heater

550000 INR/Unit

Product Details:

  • Type Thermic Oil Heater
  • Material MS
  • Voltage 310 Volt (v)
  • Power Source Electric
  • Warranty 1 Year
  • Click to View more
X

Vertical Three Pass Thermic Fluid Heater Price And Quantity

  • 1 Unit
  • 550000 INR/Unit

Vertical Three Pass Thermic Fluid Heater Product Specifications

  • MS
  • Thermic Oil Heater
  • 1 Year
  • 310 Volt (v)
  • Electric

Vertical Three Pass Thermic Fluid Heater Trade Information

  • Cash in Advance (CID) Cheque
  • 7-8 Unit Per Month
  • 30 Days
  • All India

Product Description

The THERMPAC arrangement, vertical three pass thermic liquid/warm oil warmer is intended for most extreme effectiveness, utilizing an assortment of fluid and vaporous energizes. It is outlined on account of fuel adaptability and can fire a scope of substantial oils, light oils and gasses. It permits high process temperatures at low working weights.

Specification

Capacities

From 0.1 million kcal/hr to 10.0 million kcal/hr

Efficiency

Overall efficiency of 85 % (+/-2%) on NCV

Firing fuels

Heavy oils, light oils and gases

Heat output (BTU)

0.1 million kcal/hr to 10.0 million kcal/hr




Vertical Three Pass Thermic Fluid Heater Features :




  • High limit warming framework
  • Multi fuel alternative substantial oils, light oils and gasses
  • Rough - requires next to no support
  • Over-quaint little inn bed fuel terminating frameworks can be joined
  • Huge in-overnight boardinghouse heat exchange field



Vertical Three Pass Thermic Fluid Heater Operating Range:


  • Capacities: From 0.1 million kcal / hr to 10.0 million kcal /hr
  • Temperature: Up to 350C
  • Firing fuels: Heavy oils, light oils and gases
  • Efficiency: Overall efficiency of 85 % (+/-2%) on NCV

MODEL

UNIT

VFM-04

VFM-06

VFM-10

VFM-15

VFM-20

VFM-25

Steam output

1000 kcal/hr

400

600

1000

1500

2000

2500

Oil Flow Rate

M3/hr

24

36

60

90

90

150

Max outlet Temp

*C

280

280

280

280

280

280

Temp. Rise in Heater

*C

34

34

34

34

34

34

Max. Fluid Pressure heater Outlet

Kg/cm2

2

2

2

2

2

2

Efficiency








On coal

%

76+/-2

76+/-2

76+/-2

76+/-2

76+/-2

76+/-2

On wood

%

70+/-2

70+/-2

70+/-2

70+/-2

70+/-2

70+/-2

Type of fuel



coal

and

wood



Fuel consumption


Coal

Kg / hr

120

175

290

435

580

750

Wood

Kg / hr

175

260

435

650

870

1085

Electrical load


Thermic Oil Pump

H.P.

10

15

20

30

40

40

F.D. Fan (wood)

H.P.

2

3

5

7.5

10

12.5

I.D. fan

H.P.

5

7.5

10

15

20

25

Total Ele. load

H.P.

17

25.5

35

52.5

70

77.5

Coil Hold up Cap

Ltrs

475

570

1250

2350

3150

3780

Furnace Size


Length

M.M.

1720

2040

2240

2590

2875

2875

Width

M.M.

1720

2040

2240

2590

2875

2875

Height

M.M.

1600

1600

1600

1600

1600

1600

For wood

M.M.

2500

2500

2500

2500

2500

2500

Heat Exchanger Coil


Convective Coil

Dia

1150

1270

1510

1800

2030

2420


Height

1790

2100

2860

3660

4210

4220

Radiant Coil

Dia

2000

2000

2250

2600

2900

2900


Height

1500

1500

1900

2700

3150

3550

Oil Inlet Connection

M.M.

80

80

100

125

150

150

Oil Outlet Conne

M.M.

80

80

100

125

150

150
